LANBERG LCU5-12CU-0305-R Cat5e utp piros 305m cu pvc awg24

Lanberg LCU5-12CU-0305-R Cat.5e UTP AWG24 PVC Red Ethernet Cable

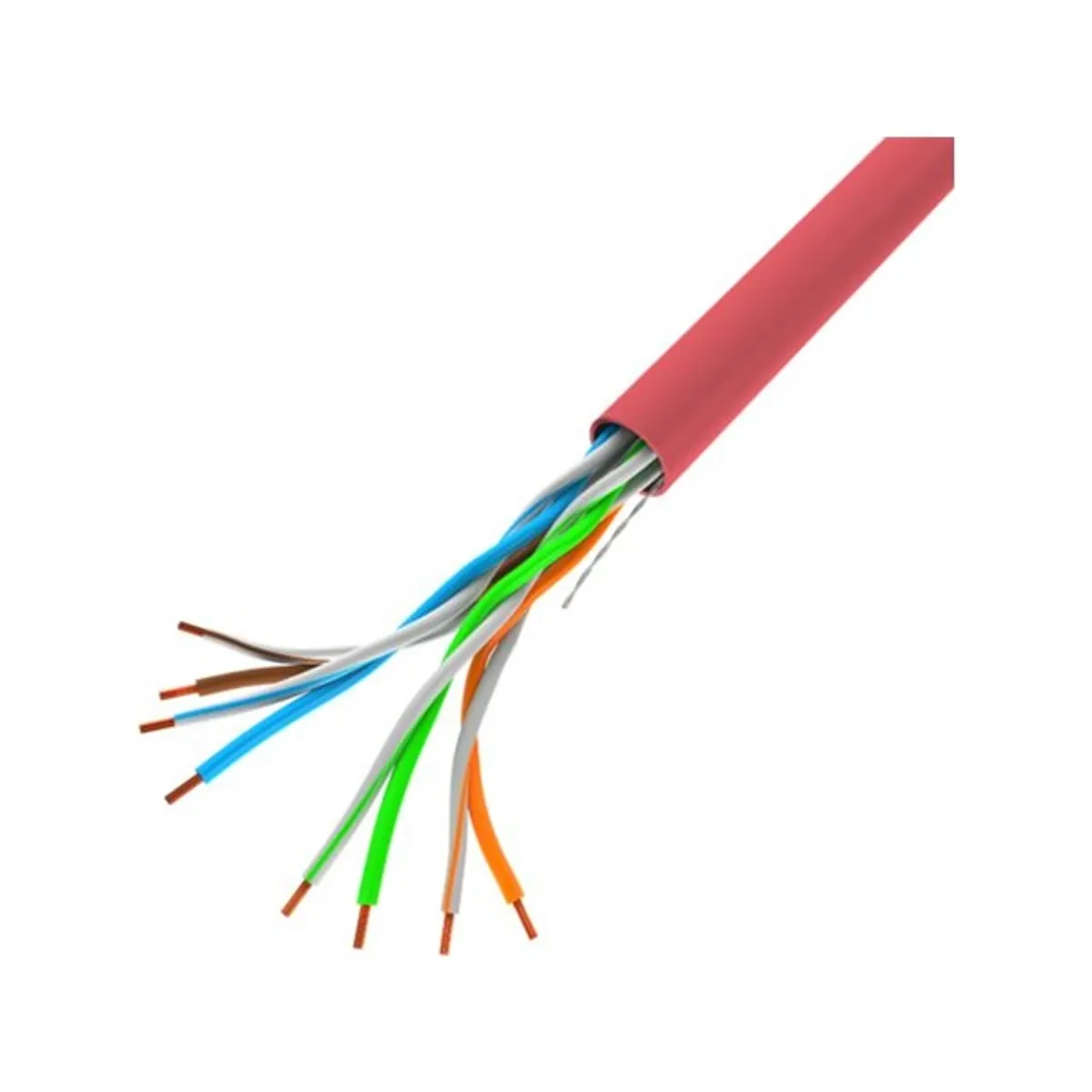

Meet the Lanberg LCU5-12CU-0305-R, a dependable unshielded Cat5e UTP Ethernet cable engineered for reliable connectivity in both professional and home environments. Supplied on a generous 305 m spool, this cable is ideal for longer installations where organization and longevity matter. Its copper conductors are 100% copper (CU), built with AWG24 strands (4x2x0.45 mm) to balance flexibility with signal integrity, all wrapped in a vivid red outer jacket for quick identification and streamlined routing.

The cable construction combines a rugged outer PVC jacket (diameter 4.7 mm) with HDPE insulation on the conductors (0.88 mm), delivering durable performance in everyday wiring tasks. With an operating frequency up to 100 MHz, it supports standard Cat5e network signals across typical office or home layouts. The specification also notes a recommended connector/lead diameter of 1.0 mm for braided cables, helping ensure clean terminations and reduced signal loss at connection points.

Highlights

• Category: Cat5e UTP unshielded cable

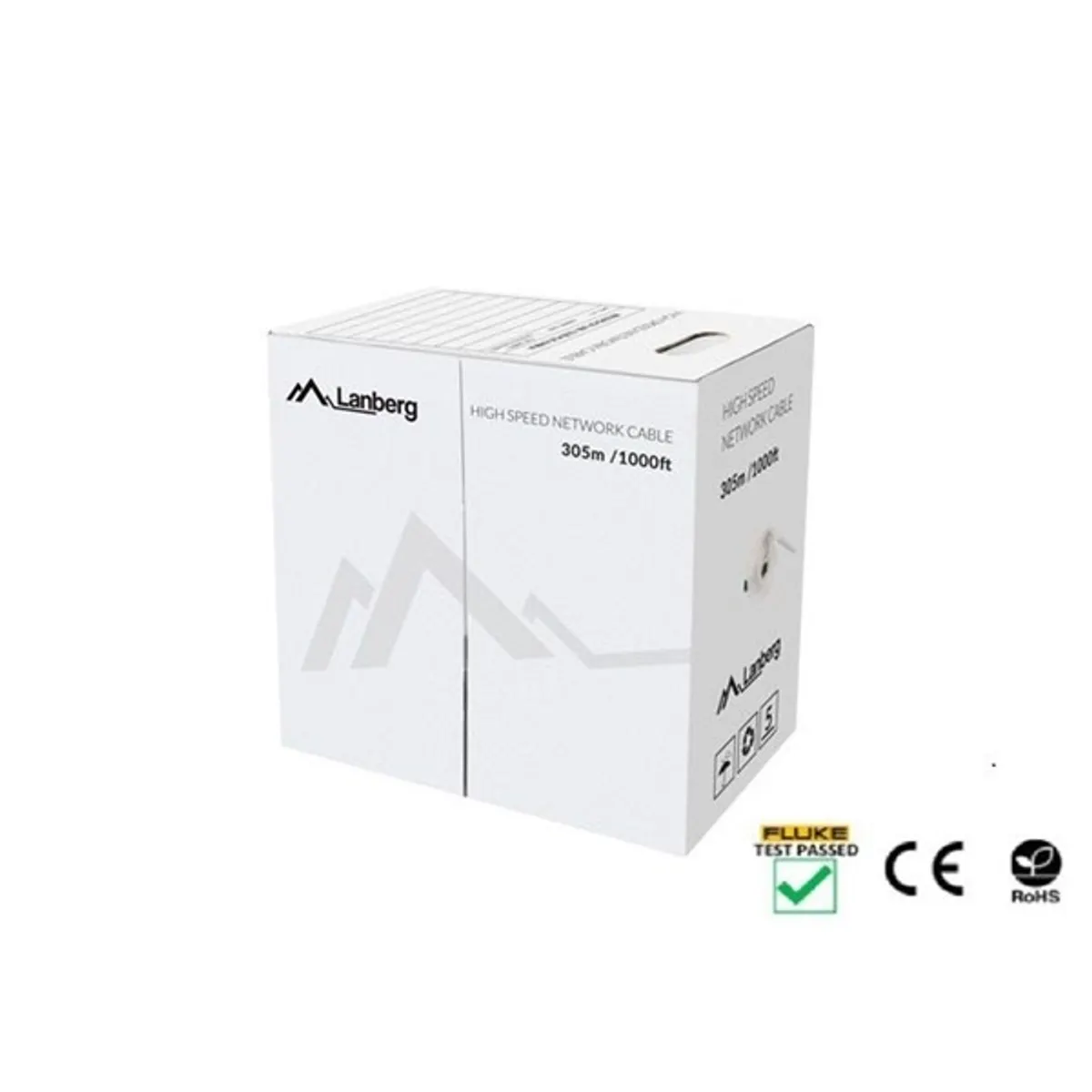

• Length: 305 m per spool
• Conductor: AWG24, 100% copper (CU)
• Color: Red outer jacket for easy routing and identification
• Outer jacket: PVC insulation 4.7 mm
• Conductor insulation: HDPE 0.88 mm
• Operating frequency: Up to 100 MHz
• Connector/lead diameter: 1.0 mm recommended for braided cables
• Packaging: 35 x 35 x 21 cm
• Electrical characteristics (20°C): DC resistance 20-40 Ω/100 m; pair-to-ground capacitance < 160 pF/100 m; impedance < 100 Ω ±15
• Storage/transport: 0-60°C
• Operating temperature: -20 to 75°C
• Operating distance: Up to 100 m

Quality and reliability are at the heart of this Lanberg cable. The unshielded design minimizes cost while still delivering solid performance in typical office deployments or home networks. The 305 m spool reduces restocking frequency and helps keep installations neat and efficient, whether you’re wiring a small office, a home theater setup, or expanding an existing network. The red jacket not only looks premium but also simplifies cable management by enabling quick color-coded identification among multiple runs. With a broad operating temperature range and robust materials, this Cat5e UTP cable is built to perform in a wide variety of environments, from controlled server rooms to living spaces with moderate interference.

Use Lanberg LCU5-12CU-0305-R for a cost-effective, scalable networking solution that pairs well with standard networking hardware and RJ-45 terminations. Its dependable electrical characteristics ensure stable performance across typical network channels, while the combination of PVC jacket and HDPE insulation delivers durability and ease of installation. Whether you’re laying out a new network or upgrading an existing one, this 305 m spool provides the right balance of length, quality, and value for long-run Ethernet cabling needs.
